Peter Teunis, Center for Global Safe WASH, Rollins School of Public Health, Emory University
2024-11-07
A realistic model of the time course of virus shedding must include an initial increase in virus concentration, followed by a decrease to undetectable levels.
Suppose virus is accumulated at an infection site and released into the intestinal tract with concentration $v_{1}(t)$, where it is transported with peristalsis, to ultimately be excreted.

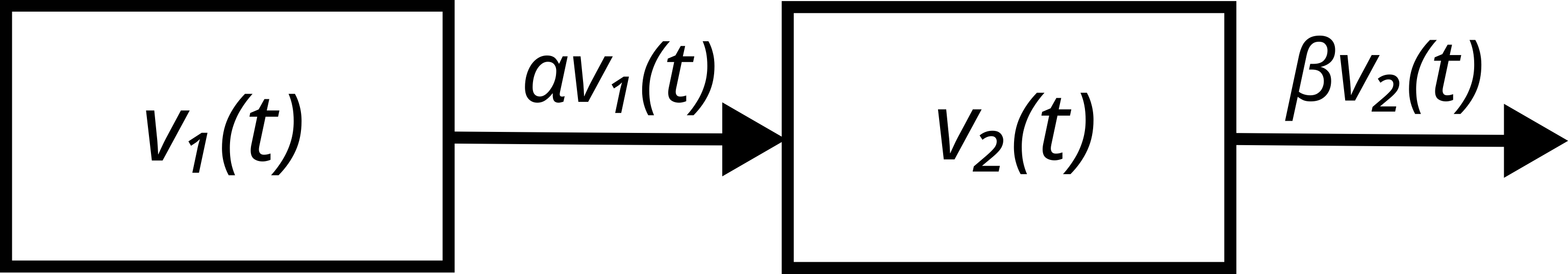

Figure 1: Virus present at an infection site is transported to the intestines with rate $\alpha$ from where it is shedded with a rate $\beta$.
The concentration $v_{2}(t)$ of virus leaving the intestines then can be described as resulting from
\[\begin{align*} \bigg\lbrace \begin{array}{ll} v_{1}^{\prime}(t) = -\alpha v_{1}(t); & v_{1}(0) = A\\ v_{2}^{\prime}(t) = +\alpha v_{1}(t) - \beta v_{2}(t); & v_{2}(0) = 0\\ \end{array} \end{align*}\]where $A$ is the initial concentration of virus at the primary infection site, $\alpha$ and $\beta$ are constants defined by the transport rate and effective volumes of the compartments within the intestinal tract (Teunis, 1994). The solution
\[\begin{align*} \bigg\lbrace \begin{array}{ll} v_{1}(t) = A\text{e}^{-\alpha t} & \\ v_{2}(t) = \frac{\alpha}{\beta -\alpha}A\text{e}^{-\alpha t} \left(1-\text{e}^{-(\beta-\alpha)t}\right) & \\ \end{array} \end{align*}\]is realistic for $\alpha >0$ and $\beta > \alpha$.
The observed fecal virus concentration can then be written as
\[\begin{align*} v(t \vert \alpha, \gamma ) = v_{0}\text{e}^{-\alpha t}(1-\text{e}^{-\gamma t}), \quad where \enspace \alpha > 0, \enspace \gamma > 0 \end{align*} \qquad \qquad (1)\]At onset of shedding ($t=0$) the virus concentration $v(t)$ increases from $0$ (with rate $v_{0}\gamma$), reaches a maximum
\[v_{1} = v_{0}\frac{\gamma}{\alpha +\gamma} \left(\frac{\alpha}{\alpha +\gamma}\right)^{\frac{\alpha}{\gamma}}\]at time
\[t_{1} = \frac{1}{\gamma} \log\left(\frac{\alpha +\gamma}{\alpha}\right)\]and then decreases to $0$ again (with rate $v_{0}\alpha$).
If the constant $v_{0}$ is defined as
\[\begin{align*} v_{0} = \frac{\alpha +\gamma}{\gamma} \left(\frac{\alpha +\gamma}{\alpha}\right)^{\frac{\alpha}{\gamma}} \end{align*} \qquad \qquad (2)\]then the peak virus concentration is $v_{1} = 1$. When virus concentrations are measured on a log scale the regression model is
\[\begin{align*} u(t \vert \alpha, \gamma, c, d) = c + d \log(v(t \vert \alpha, \gamma )) \end{align*} \qquad \qquad (3)\]with scale factor $d$ and offset $c$.
The above model can be fitted to observed values (log concentrations of virus in fecal samples of infected individuals) by assuming observations have a normally distributed measurement error with expected value $u$ and standard deviation $\sigma$ (or precision $\tau = 1/\sigma^{2}$).
Suppose a subject $n$ has a set of observed log concentrations
\[\boldsymbol{U}\_{n} = (U\_{n,1}, U\_{n,2},\dots, U\_{n,K\_{n}})\]at times since infection onset
\[\boldsymbol{T}\_{n} = (T\_{n,1}, T\_{n,2},\dots, T\_{n,K\_{n}})\]The likelihood of the model for this subject then becomes
\[\begin{align*} \ell_{n} = \prod_{k=1}^{K_{n}}\phi(U_{n,k}\vert u(T_{n,k},\alpha_{n}, \gamma_{n}, c_{n}, d_{n}),\tau) \end{align*}\]where $\phi(\mu,\tau)$ is the normal probability density with mean $\mu$ and precision $\tau$ (standard deviation $\sigma = 1/\sqrt{\tau}$).
Note that accounting for censored observations is straightforward: in case of a lower limit of detection $u_{\text{min}}$ the contribution (of observation $k$ from subject $n$) to the likelihood is
\[\Phi(u_{\text{min}}\vert u(T_{n,k},\alpha_{n},\gamma_{n},c_{n},d_{n}),\tau)\]where $\Phi()$ is the cumulative probability
\[\Phi(u\vert \mu,\tau) = \int_{-\infty}^{u}\phi(u\vert \mu,\tau)\]The onset of shedding, $t=0$ in equation (1), cannot be observed. For symptomatic subjects the onset of symptoms may be assumed to occur shortly after the onset of shedding (Sukhire et al., 2012). For asymptomatic subjects the onset of symptoms (onset of virus shedding) is usually missing.
When there are observations of the shedding response an estimate of the onset of shedding may be found by shifting the origin of the time axis until optimum agreement between the observed virus concentrations and the curve predicted by equation (1).

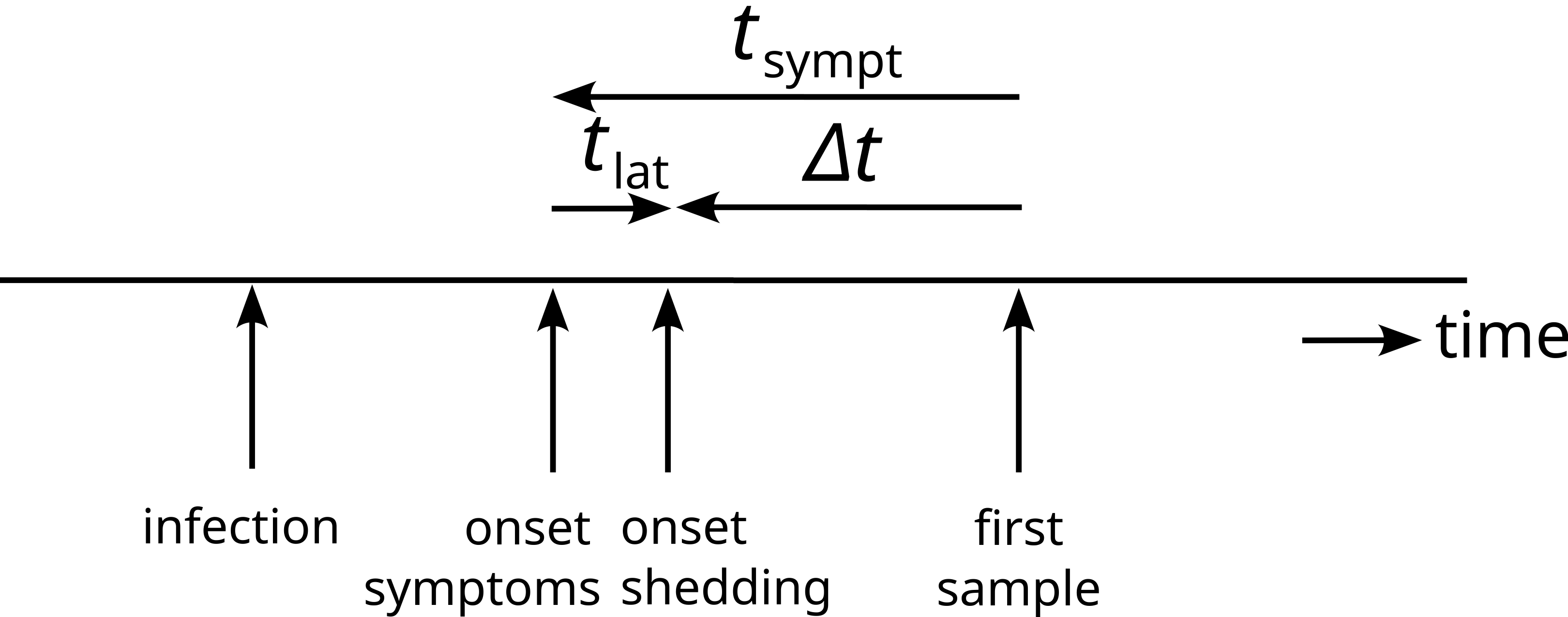

Figure 2: Timing of events relevant for finding the onset of the shedding response. When a subject is infected tissues in the intestinal tract become colonized by virus and after a few days symptoms of acute illness may develop. Virus may also be shed in feces, not necessarily at the same time as the appearance of symptoms. Some latency $t_{\text{lat}}$ may exist between onsets of shedding and symptoms. Note that $t_{\text{lat}}$ may be positve or negative, depending on the within-host dynamics of the infection. Usually the first sample is taken a bit later: the delay between onset of shedding and date of first sample is $\Delta t$.
It is convenient to take the time of the first sample as reference (as it is always present) and express onset of shedding as the time $\Delta t$ from the first sample (Figure 2).
\[\begin{align*} u(t + \Delta t \vert \alpha, \gamma, c, d) = c - d \log(v(t + \Delta t \vert \alpha, \gamma )) \end{align*}\]For symptomatic cases the onset of symptoms may be known. The onset of shedding may not coincide with symptom onset but the difference can be considered smaller than $\Delta t$ ($t_{\text{lat}}$ in Figure 2).
As long as observed log concentrations $U_{n,k}$ are present, $\Delta t$ can be estimated using the likelihood
\[\begin{align*} \ell_{n} = \prod_{k=1}^{K_{n}}\phi(U_{n,k}\vert u(T_{n,k}+\Delta t_{n},\alpha_{n}, \gamma_{n}, c_{n}, d_{n}),\tau) \psi(\Delta t_{n}) \end{align*}\]where $\Delta t_{n}$ is the offset between first sample and onset of shedding (for subject $n$) with probability density $\psi()$. It is possible to facilitate estimation of $\Delta t$ in case any additional information on the times of infection and the distribution of the latency (of symptoms or shedding) by defining appropriate prior distributions.
Each infected subject may be assumed to have their own unique shedding response, so that the parameter vector $\boldsymbol{\theta} = \log(\alpha, \gamma, c, d)$ varies among shedding individuals. The log transform is used here because all parameters must be positive.
In a Bayesian framework the variation of these parameters in the study population can be described by their joint probability distribution
\[\begin{align*} \boldsymbol{\theta} = \log(\alpha, \gamma, c, d) \sim N(\boldsymbol{\mu}\_{\theta},\boldsymbol{\tau}\_{\theta}) \end{align*}\]where $N(\boldsymbol{\mu}_{\theta},\boldsymbol{\tau}_{\theta})$ is a multinormal distribution with mean vector $\boldsymbol{\mu}_{\theta} = (\mu_{\alpha}, \mu_{\gamma}, \mu_{c}, \mu_{d})$ and precision matrix $\boldsymbol{\tau}_{\theta}$.
Figure 3 shows the structure of the Bayesian model in a directed acyclic graph.
Figure 3: Directed acyclic graph of the shedding model. For subject $n$ ($n = 1, 2, \dots, N$) sample $k$ ($k = 1,2,\dots, K_{n}$) has log concentrations $U_{n,k}$ observed at times $T_{n,k}$. Log concentrations are measured with precision $\tau_{\text{obs}}$. The shedding response $u(t + \Delta t, \boldsymbol{\theta})$ has parameters $\boldsymbol{\theta}_{n} = (\alpha_{n}, \gamma_{n}, c_{n}, d_{n})$ with joint normal distribution, mean $\boldsymbol{\mu}_{\theta}$, precision matrix $\boldsymbol{\tau}_{\theta}$. The offset $\Delta t_{n}$ between time of first sample $T_{n,1}$ and onset of shedding has its own (normal) distribution (mean $\mu_{\Delta t}$ and precision $\tau_{\Delta t}$).
The source code for the corresponding JAGS model
Equation (3) can be translated into
u[subj,obs] <- c[subj] + d[subj]*log(exp(-alpha[subj]*t[subj,obs])*
(1-exp(-gamma[subj]*t[subj,obs]))*v0[subj])
where subj and obs refer to a subject ($n = 1,\dots , N$) and the
observation for that subject ($k = 1,\dots,K_{n}$). The normalizing
factor v0[subj] as defined in equation (2) is
v0[subj] <- ((alpha[subj]+gamma[subj])/gamma[subj])*
((alpha[subj]+gamma[subj])/alpha[subj])^(alpha[subj]/gamma[subj])
To calculate the time between the first sample and onset of shedding
offs.shed = $\Delta t$ (Figure 2), first a distribution is defined for the time from first sample to symptom onset offs.sympt = $t_{\text{sympt}}$.
offs.sympt[subj] ~ dnorm(mu.offs,tau.offs)
Then the time from symptom onset to start of shedding, $t_{\text{lat}}$, is assumed to follow a lognormal distribution. loglat = $\log(t_{\text{lat}})$.
loglat[subj] ~ dnorm(mu.loglat,tau.loglat)
now $\Delta t$ = offs.shed may be calculated
offs.shed[subj] <- offs.sympt[subj]-exp(loglat[subj])
The time from the start of shedding as used in Equation (3) can
now be calculated by correcting the time of the sample t.obs[subj,obs]
t[subj,obs] <- t.obs[subj,obs]-offs.shed[subj]
Now take the observed log concentrations of virus $U_{n,k}$ or
log.obs[subj,obs] that are assumed normally distributed with expected
value $u(T_{n,k},\boldsymbol{\theta}_n)$ = u[subj,obs] and precision
$\tau$ = tau.obs
logv.obs[subj,obs] ~ dnorm(u[subj,obs],tau.obs)
Censored observations require different treatment. In JAGS the
dinterval distribution can be used. Here for LLOD (lower detection
limit) an indicator variable must be supplied v.cens = 1 for observed
virus concentrations above detection limit and 0 for observations below
the detection limit. The detection limit is $U_{\text{lim}}$ =
logcenslim.
v.cens[subj,obs] ~ dinterval(logv.obs[subj,obs],logcenslim)
When sample $k$ in subject $n$ returns a virus concentration
$U_{n,k} \ge U_{\text{lim}}$ then
v.cens[subj,obs] = 1 and logv.obs = $U_{n,k}$. In case sample $k$ in
subject $n$ returns a virus concentration $U_{n,k} < U_{\text{lim}}$
then v.cens[subj,obs] = 0 and logv.obs = NA: because it is missing a
logv.obs $< U_{\text{lim}}$ is then generated.
Remains a specification of the priors for the parameters of the shedding model. First, the 4 parameters $\alpha, \gamma, c, d$ are collected (and log transformed) into a vector $\boldsymbol{\theta}$ and a multinormal distribution is defined
alpha[subj] <- exp(theta[subj,1])
gamma[subj] <- exp(theta[subj,2])
c[subj] <- exp(theta[subj,3])
d[subj] <- exp(theta[subj,4])
theta[subj,1:4] ~ dmnorm(mu.theta,tau.theta)
Then priors are defined: a multinormal distribution for the mean vector
$\boldsymbol{\mu}_{\theta}$= mu.theta and a Wishart distribution for
the precision matrix $\boldsymbol{\tau}_{\theta}$ = tau.theta.
Finally, the precision $\tau_{\text{obs}}$ = tau.obsfor measurement
error of log virus concentrations gets a gamma ditributed prior.
mu.theta ~ dmnorm(mu.hyp,tau.hyp)
tau.theta ~ dwish(omega,df)
tau.obs ~ dgamma(tau.obs.hyp[1],tau.obs.hyp[2])
The only thing left now is to define loops for the indices $n$ = subj
and $k$ = obs.
Below is the complete model code again:
model{
for(subj in 1:n.subj) {
v0[subj] <- ((alpha[subj]+gamma[subj])/gamma[subj])*
((alpha[subj]+gamma[subj])/alpha[subj])^(alpha[subj]/gamma[subj])
offs.sympt[subj] ~ dnorm(mu.offs,tau.offs)
loglat[subj] ~ dnorm(mu.loglat,tau.loglat)
offs.shed[subj] <- offs.sympt[subj]-exp(loglat[subj])
for(obs in 1:n.obs[subj]) {
t[subj,obs] <- t.obs[subj,obs]-offs.shed[subj]
u[subj,obs] <- c[subj] + d[subj]*
log(exp(-alpha[subj]*t[subj,obs])*(1-exp(-gamma[subj]*t[subj,obs]))*v0[subj])
v.cens[subj,obs] ~ dinterval(logv.obs[subj,obs],logcenslim)
logv.obs[subj,obs] ~ dnorm(u[subj,obs],tau.obs)
}
alpha[subj] <- exp(theta[subj,1])
gamma[subj] <- exp(theta[subj,2])
c[subj] <- exp(theta[subj,3])
d[subj] <- exp(theta[subj,4])
theta[subj,1:4] ~ dmnorm(mu.theta,tau.theta)
}
mu.theta ~ dmnorm(mu.hyp,tau.hyp)
tau.theta ~ dwish(omega,df)
tau.obs ~ dgamma(tau.obs.hyp[1],tau.obs.hyp[2])
}
We use the longitudinal SARS-CoV-2 fecal shedding data from Wölfel et al. (2020). The data includes observations of SARS-CoV-2 RNA concentration in 82 stool samples from 9 patients. The date of sample collection spans from Day 3 to Day 22 after symptom onset. We load the data in R with:
shedding.data <- data.frame(subjects = c(1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 2, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 3, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 4, 5, 5, 5, 5, 5, 5, 5, 6, 6, 6, 6, 6, 6, 6, 6, 7, 7, 7, 7, 7, 7, 7, 8, 8, 8, 8, 8, 8, 9, 9, 9),
day = c(8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 20, 21, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 19, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 22, 23, 7, 8, 9, 10, 11, 12, 14, 15, 16, 19, 20, 6, 8, 9, 12, 20, 21, 26, 6, 8, 9, 13, 16, 18, 21, 22, 6, 18, 19, 20, 23, 24, 26, 3, 4, 5, 8, 9, 12, 8, 9, 10),
value = 10^c(6.64, 7.16, 6.68, 4.67, 4.7, 3.67, 3.7, 3.73, 3.01, 2.42, 3.46, 2.8, 5.74, NA, 4.88, 4.77, 3.63, 3.25, 2.83, 3.84, 3.87, 3.11, 2.28, 6.1, 6.03, 6.79, 6.62, 4.68, 5.1, 5.79, 4.3, 4.89, 3.64, 4.71, 4.75, 4.09, 2.33, NA, NA, NA, 6.05, 7.23, 7.51, 5.57, 4.43, 5.15, 4.88, 4.25, 3.98, 3.53, 3.56, 4.68, 2.78, 2.99, 4.27, 2.57, 2.95, NA, 3.88, 3.78, 4.09, 4.23, NA, 4.58, NA, 2.57, 3.66, 2.59, NA, NA, 2.04, NA, 1.97, 4.68, 4.33, 3.61, 3.99, 2.71, NA, NA, NA, NA))
When there are samples from $N$ subjects with up to $K$ observations per subject then the following data are needed:
Observation times (from first sample) t.obs: $N\times K$ matrix
Log virus concentrations logv.obs: $N\times K$ matrix
Censoring indicator v.cens: $N\times K$ matrix
Times from symptom onset (re first sample) offs.sympt: vector size
$N$
Numbers of observations per subject n.obs: vector size $N$
Number of subjects n.subj: $N$
Censoring limit logcenslim
It is convenient to add a single subject, without any observed data
n.obs[subj] = 0: for this (hypothetical subject) posterior MC samples
are sampled from the (posterior) distribution of $\boldsymbol{\theta}$,
making this a posterior predictive sample for the joint population.
#Format the data as input for JAGS model;
nsubj <- length(unique(shedding.data$subjects)) #number of subjects;
nobs <- as.numeric(table(shedding.data$subjects)) #number of observations for each subject;
max.obs <- max(nobs) #maximum number of observations for any subject;
censorlimit = 1e2 #limit of quantification;
obs <- array(NA,dim=c(nsubj,max.obs,4)) #array of observations;
for(k.subj in 1:nsubj){
obs[k.subj,1:nobs[k.subj],1] <- shedding.data$day[which(shedding.data$subjects==k.subj)]
obs[k.subj,1:nobs[k.subj],2] <- shedding.data$value[which(shedding.data$subjects==k.subj)]
obs[k.subj,1:nobs[k.subj],3] <- as.numeric(is.na(shedding.data$value[which(shedding.data$subjects==k.subj)]))
obs[k.subj,which(obs[k.subj,,3]==1),4] <- censorlimit/10
}
t.obs <- obs[,,1] #time of observations after symptom onset;
c.obs <- obs[,,2] #concentration of pathogen;
c.cens <- obs[,,3] #censored indicator: whether the measured concentration is below the Limit of Detection;
c.init <- obs[,,4] #initial values for censored measurements;
offs.sympt <- obs[,1,1]; # first sample: nr days after symptom onset
#for prediction;
nobs <- c(nobs,0)
offs.sympt <- c(offs.sympt,0); # for prediction assume onset is known
# log transform concentrations
logv.obs <- log(c.obs);
v.cens <- c.cens;
logv.init <- log(c.init);
logcenslim <- log(censorlimit);
In a Bayesian framework unknown parameters can be specified by prior distributions reflecting a priori knowledge available before the analysis (Bayes, 1763). Usually such knowledge cannot be specified precisely and consequently prior distributions are defined to reflect such ignorance. It should be noted that often the structure of the model also imposes limits on possible outcomes and therefore can also represent prior information.
The start of the shedding response, the onset of shedding, cannot be directly observed. Often the onset of symptoms is observed: the onset of shedding may be delayed relative to (or precede) symptom onset. Taking the notation in Figure 2 the onset of shedding $t_{\text{shed}}$ may be calculated relative to the date $t_{1}$ of the first sample
\[\Delta t = t_{1}-\left(t_{\text{sympt}}-t_{\text{lat}}\right)\]In practice $t_{\text{lat}}$ cannot usually be observed although for some diseases some general knowledge may be available for this latency.
The prior for the symptom offset $t_{\text{sympt}} =$ offs.sympt is a normal distribution with mean mu.offs$= -1.0$ and precision (1/variance) tau.offs$= 0.0001$. This is a ‘flat’ prior that allows $t_{\text{sympt}}$ to vary over a wide range as is appropriate because when symptom onset is unknown then there is no way of knowing when infection occurred.
As explained earlier the onset of shedding is estimated by adjusting the offset $\Delta t$ (the time from shedding onset to the date of the first sample). When the symptom onset has been observed this allows estimation of the latency $t_{\text{lat}} = \exp($ loglat $)$. The prior for loglat is a normal distribution with mean mu.loglat $= -1.0$ and precision tau.loglat$= 10.0$. This is a ‘narrow’ prior that restricts $t_{\text{lat}}$ to a narrow range around $0.37$. Note that it has been assumed that $t_{\text{lat}} > 0$: onset of symptoms is assumed to precede onset of shedding. Should one want to explore whether a larger range for $t_{\text{lat}}$ is supported by the data, the precision tau.loglat may be lowered.
The parameter vector $\boldsymbol{\theta}$ has a multivariate normal distribution with mean vector $\boldsymbol{\mu}_{\theta}$ and precision matrix $\boldsymbol{\tau}_{\theta}$.
The prior for $\boldsymbol{\mu}_{\theta} =$mu.theta is a multivariate normal distribution (Gelman et al., 2014) with parameters $\mu_{\text{hyp}} =$mu.hyp and $\tau_{\text{hyp}} =$tau.hyp. The mean vector
and the precision matrix
\[\tau_{\text{hyp}} = \left(\begin{array}{cccc} 1 & 0 & 0 & 0\\ 0 & 1 & 0 & 0\\ 0 & 0 & 1 & 0\\ 0 & 0 & 0 & 1\\ \end{array}\right)\]The parameters in the mean vector have been chosen by graphing the model Equation (3) to (approximately) reflect the observed range of (log) virus concentrations. This is not essential for convergence but may help in decreasing the number of burn-in iterations. The precision matrix assumes absence of correlations among the means of the parameters and weak limits on their variances.
The prior for $\boldsymbol{\tau}_{\theta} =$ tau.theta is a Wishart distribution (Gelman et al., 2014) with $\Omega =$omega and $\text{df}=$df.
and
\[\text{df} = 4\]This prior distribution allows variation in $\boldsymbol{\theta}$ while making no a priori assumptions about correlation among its components. Note that such correlations may be studied in the posterior $\boldsymbol{\tau}_{\theta}$.
Observed virus concentrations are assumed to have a lognormal measurement error. That means that $u = \log(v)$ has a normal distribution with the observed log concentration as mean and precision (1/variance) $\tau_{\text{obs}}$.
The prior of $\tau_{\text{obs}} =$tau.obs.hyp is a Gamma distribution with parameter vector
reflecting the (known) measurement error of the used assay.
When having arrived at a model run that appears to converge and produce stable output it is always a good idea to relax priors and check how the output changes. Ideally, when data provide sufficient information, a change in priors is only a minor influence on the results.
#priors
mu.offs <- -1.0
tau.offs <- 0.0001
mu.loglat <- -1.0
tau.loglat <- 10.0
mu.hyp <- c(-3.0,-3.0,2.7,-0.7);
tau.hyp <- diag(c(1.0,1.0,1.0,1.0))*1e0
omega <- diag(c(1.0,1.0,1.0,1.0)*1e-1)
df <- 4
tau.obs.hyp <- c(4,20)
And the data input into JAGS model is created as two lists:
#JAGS model data input
#data input
longdata <- list("t.obs"=t.obs, "logv.obs"=logv.obs, "v.cens"=v.cens,
"offs.sympt"=offs.sympt,
"n.obs"=nobs, "n.subj"=nsubj+1, "logcenslim"=logcenslim,
"mu.offs"=mu.offs, "tau.offs"=tau.offs,
"mu.loglat"=mu.loglat, "tau.loglat"=tau.loglat,
"mu.hyp"=mu.hyp, "tau.hyp"=tau.hyp,
"omega"=omega, "df"=df,
"tau.obs.hyp"=tau.obs.hyp)
#initial input
longinits <- list("logv.obs"=logv.init)
Running the model (JAGS v4.3.2; runjags v2.2.2-4; R v4.4.1) with 4 chains for 10000 iterations (adaptation 10000, burnin 10000) after thinning produced a posterior Monte Carlo sample of size $4\times 1000$.
library(runjags)
file.mod <- "model.jags"
nchains <- 4 # num of MC chains to run simultaneously;
nadapt <- 10000 # num of iterations for adaptation;
nburnin <- 10000 # num of iterations to use for burn-in;
niter <- 10000 # num of samples in posterior chains;
nmc <- 1000 # num of samples in posterior chains;
nthin <- round(niter/nmc) # thinning needed to produce nmc from niter;
#we are monitoring the following five parameters;
tomonitor <- c("offs.shed","alpha","gamma","c","d")
initsfunction <- function(chain){
stopifnot(chain %in% (1:4)) # max 4 chains allowed...
.RNG.seed <- (1:4)[chain]
.RNG.name <- c("base::Wichmann-Hill","base::Marsaglia-Multicarry",
"base::Super-Duper","base::Mersenne-Twister")[chain]
return(list(".RNG.seed"=.RNG.seed,".RNG.name"=.RNG.name,
"logv.obs"=logv.init))
}
#mcmc output;
jags.post <- run.jags(model=file.mod,data=longdata,
inits=initsfunction,method="parallel",
adapt=nadapt,burnin=nburnin,thin=nthin,sample=nmc,
n.chains=nchains,monitor=tomonitor,summarise=FALSE)
And the posterior samples can be extracted from the Markov Chain Monte Carlo (MCMC) output.
library(coda);
mcmc.mat <- as.matrix(as.mcmc.list(jags.post))
nmc <- nrow(mcmc.mat)
pred.subj <- nsubj+1
#function to extract posterior samples from MCMC object;
extr.var <- function(nam,index){
var.mc <- c()
varname <- paste(nam,"[",sep="")
if(length(index)==1) varname <- paste(varname,index,"]",sep="")
if(any(is.na(index))) varname <- nam
if(length(index)>1){
for(k.index in 1:(length(index)-1)){
varname <- paste(varname,index[k.index],",",sep="")
}
varname <- paste(varname,index[length(index)],"]",sep="")
}
var.mc <- mcmc.mat[,which(colnames(mcmc.mat)==varname)]
return(var.mc)
}
#extract the posterior samples;
alpha <- array(NA,dim=c(pred.subj,nmc))
gamma <- array(NA,dim=c(pred.subj,nmc))
c <- array(NA,dim=c(pred.subj,nmc))
d <- array(NA,dim=c(pred.subj,nmc))
offs.shed <- array(NA,dim=c(pred.subj,nmc))
for(k.subj in 1:pred.subj){
alpha[k.subj,] <- extr.var("alpha",k.subj)
gamma[k.subj,] <- extr.var("gamma",k.subj)
c[k.subj,] <- extr.var("c",k.subj)
d[k.subj,] <- extr.var("d",k.subj)
offs.shed[k.subj,] <- extr.var("offs.shed",k.subj)
}
shed.pars <- list("alpha"=alpha,"gamma"=gamma,"c"=c,"d"=d,
"offs.shed"=offs.shed)
Figure 4 below shows the observed data and estimated fecal shedding curves with 95% Credible Interval.
source("graph-func.r")
source("minticks.r")
alpha <- shed.pars$alpha
gamma <- shed.pars$gamma
c <- shed.pars$c
d <- shed.pars$d
offs.shed <- shed.pars$offs.shed
pred.subj <- nsubj+1
trange <- c(0,25)
colvec <- rep("black",nsubj)
par(mfrow=c(3,3))
for(k.subj in 1:(nsubj)){
if(nobs[k.subj]!=0){
plot(-1,-1,xlim=c(0,25),ylim=c(0,10),col="white",
xlab="t (days)",ylab="log10(gc/mL)",main=k.subj,yaxt="n")
lines(x=c(0,25),y=log10(c(censorlimit,censorlimit)),lty=3,col="black")
graph.obs(k.subj,colvec[k.subj])
graph.resp(trange,k.subj,colvec[k.subj])
ticks.log(2)
}
}

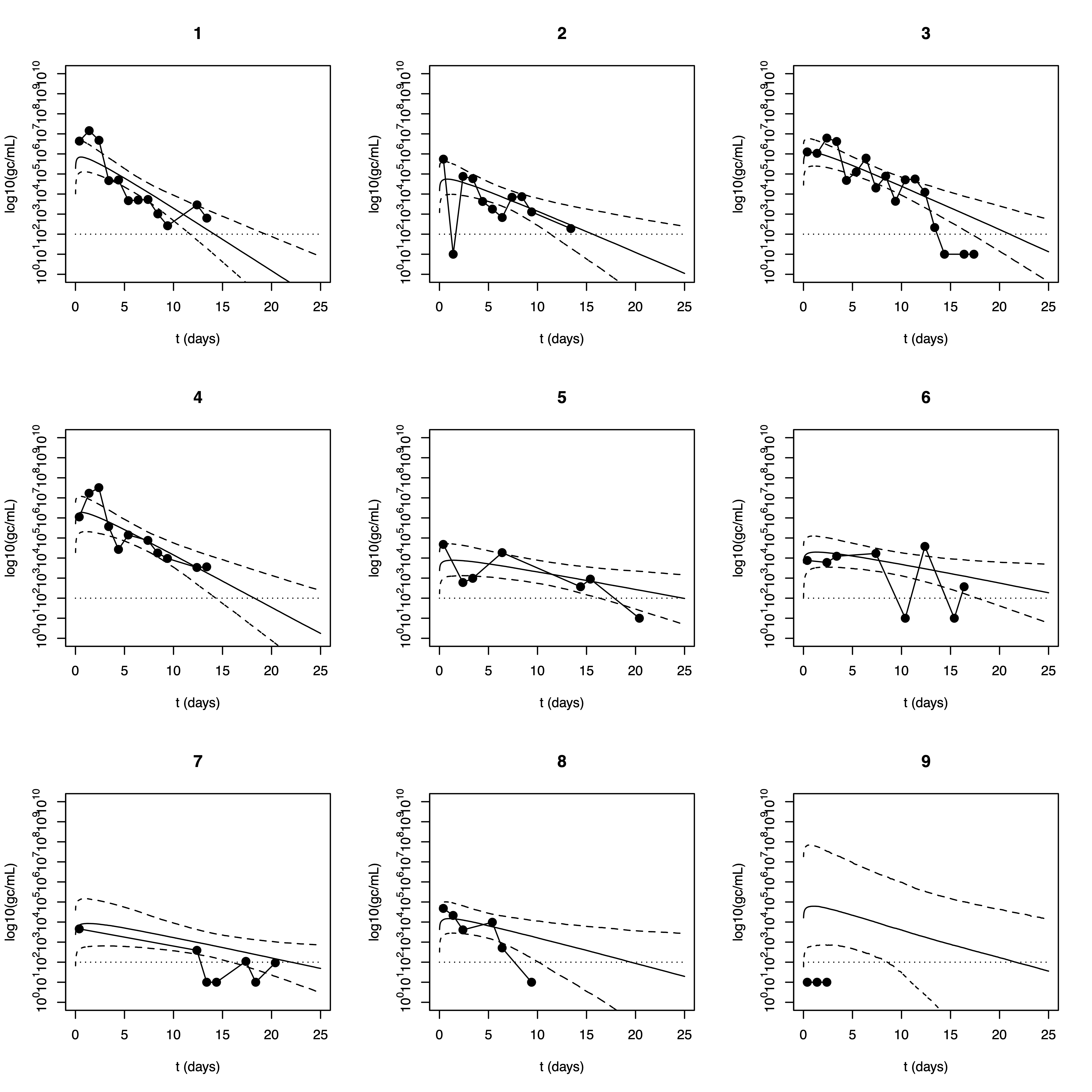

Figure 4: Estimated fecal shedding dynamics of SARS-CoV-2 in 9 subjects: median and 95% credible interval range reported. Y-axis: genome copies per mL.
Figure 5 shows a graph of the data and a predicted time course of fecal shedding, calculated from the posterior predictive sample of the parameter vector $\boldsymbol{\theta}$.
par(mfrow=c(1,1))
plot(-1,-1,xlim=trange,col="white",ylim=c(0,10),
xlab="t (days)",ylab="concentration (gc/mL)",main="",yaxt="n")
lines(x=trange,y=log10(c(censorlimit,censorlimit)),lty=3,col="black")
for(k.subj in 1:nsubj){
if(nobs[k.subj]!=0){
graph.obs(k.subj,"gray")
}
}
graph.resp(trange,pred.subj,"black")
ticks.log(2,n.major=5)

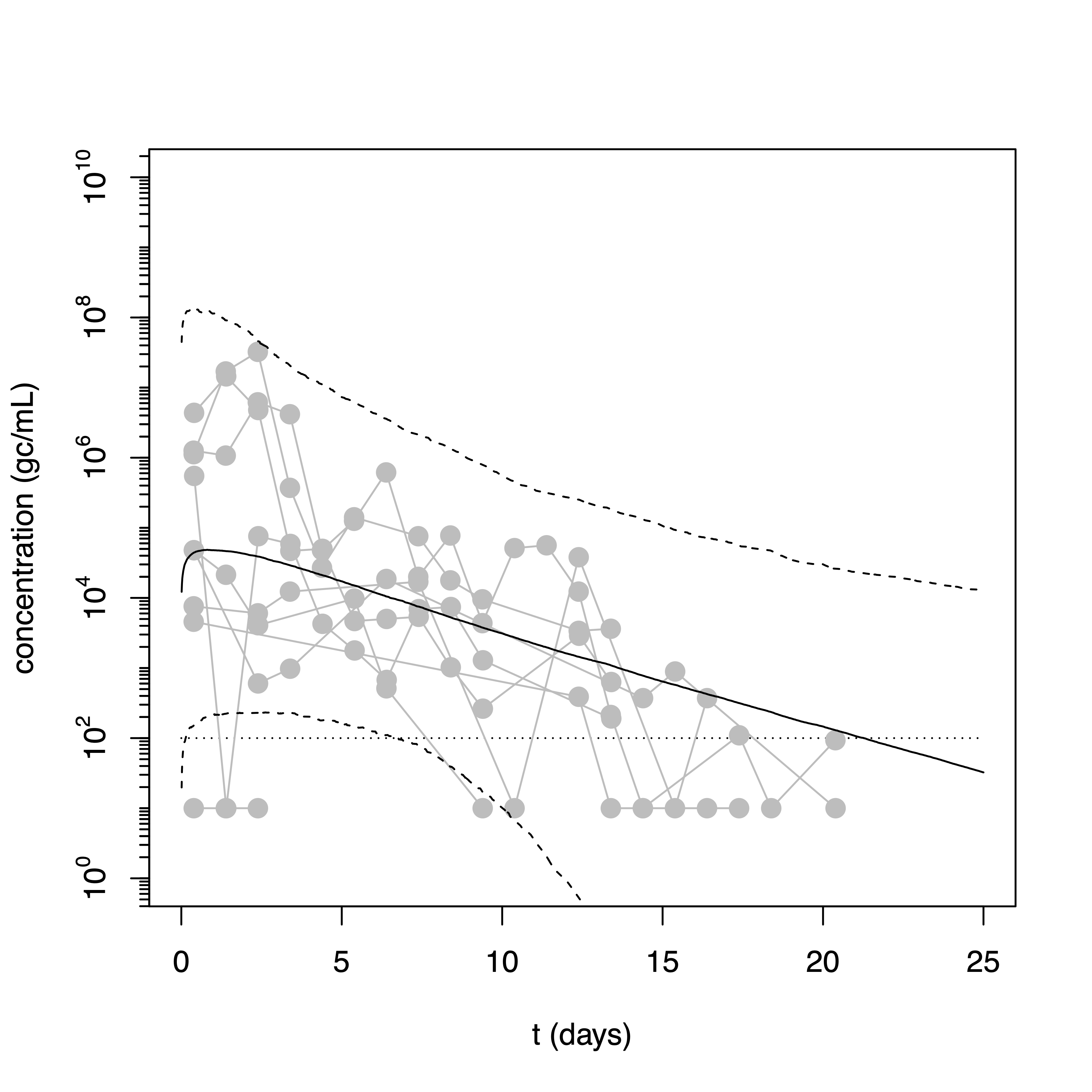

Figure 5: Predicted time course of fecal shedding of nCoV in 9 subjects ($N=82$): median and 95% credible interval range reported. Y-axis: genome copies per mL.
Figure 6 shows residuals for individual response curves.
library(Hmisc)
nrec <- nsubj*sum(nobs)*2
resid <- array(NA,dim=c(nrec,3))
k.rec <- 1
for(k.subj in 1:nsubj){
for(k.obs in 1:nobs[k.subj]){
if(!is.na(c.obs[k.subj,k.obs])){
resid[k.rec,] <-
log10(exp(quant.resp(k.subj,t.obs[k.subj,k.obs],TRUE,FALSE)))-
log10(c.obs[k.subj,k.obs])
k.rec <- k.rec + 1
}
}
}
n.rec <- k.rec
lower <- as.numeric(na.omit(c(resid[1:n.rec,1])))
med <- as.numeric(na.omit(c(resid[1:n.rec,2])))
upper <- as.numeric(na.omit(c(resid[1:n.rec,3])))
index <- 1:length(med)
pdf("./output/residuals.pdf",width=6,height=4)
errbar(x=index[!is.na(offs.sympt)],
y=med[!is.na(offs.sympt)],
yplus=upper[!is.na(offs.sympt)],add=FALSE,
yminus=lower[!is.na(offs.sympt)], ylim=c(-5,5),
xlab="observation #",ylab="residual (log gc/mL)",errbar.col="black")

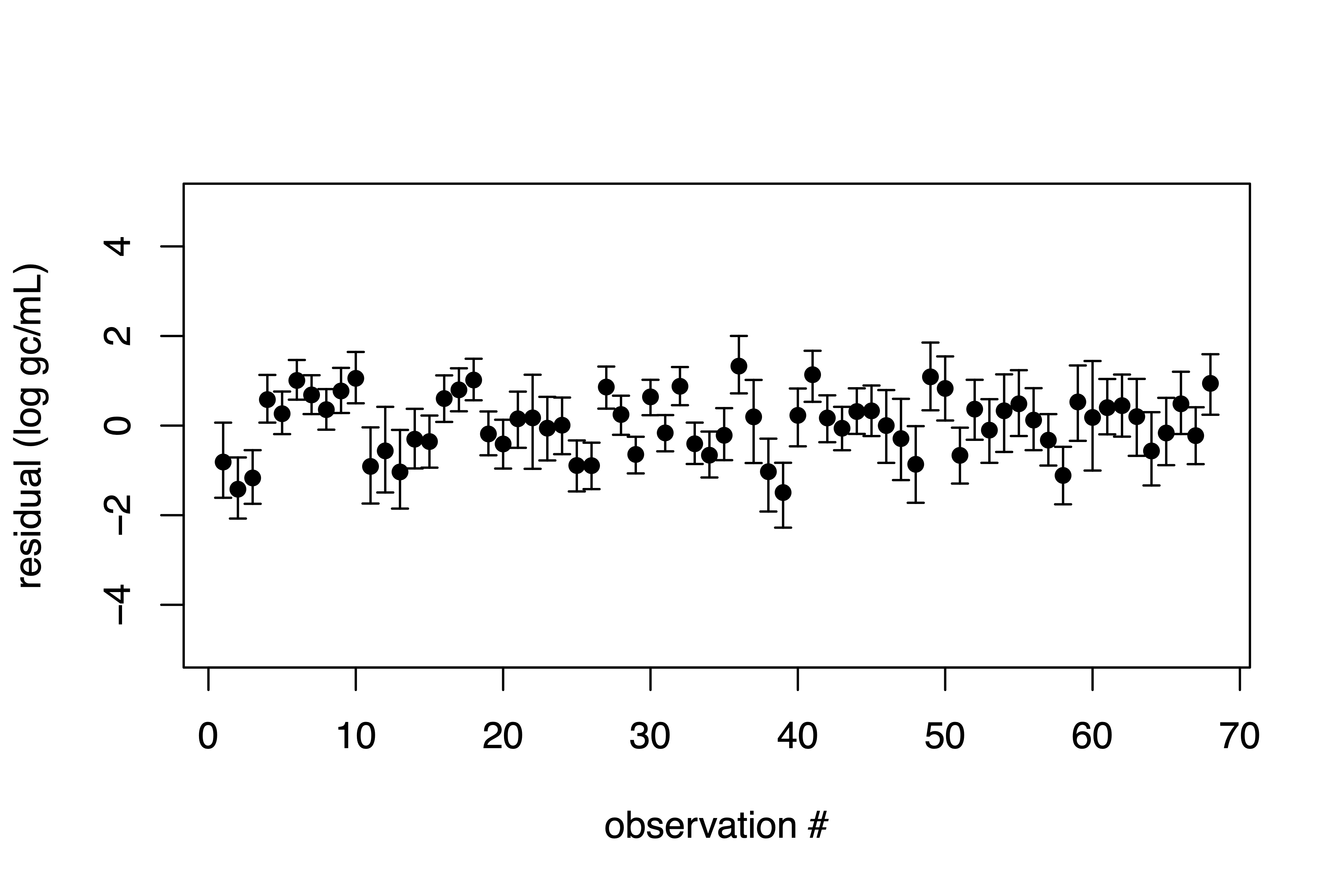

Figure 6: Difference between predicted and observed log virus concentrations. Note that this can be shown only for samples with virus concentration above the lower detection limit: 68 out of 82 samples in 9 subjects.
Thomas Bayes. An essay towards solving a problem in the doctrine of chances. Biometrika, 45:296–315, 1958. Reprint of a letter by Mr. Price, to John Canton, 1763. https://doi.org/10.1098/rstl.1763.0053
Andrew Gelman, John Carlin, Hal Stern, David Dunson, Aki Vehtari, and Donald Rubin. Bayesian Data Analysis. CRC Press, Boca Raton, Fla USA, third edition, 2014.
Peter F.M. Teunis. Infectious gastroenteritis–opportunities for dose response modeling. Technical Report 284 550 003, RIVM, Bilthoven, November 1997.
Faizel H. A. Sukhrie, Peter Teunis, Harry Vennema, Cedrick Copra, Matthias F. C. Thijs Beersma, Jolanda Bogerman, Marion Koopmans, Nosocomial Transmission of Norovirus Is Mainly Caused by Symptomatic Cases, Clinical Infectious Diseases, Volume 54, Issue 7, 1 April 2012, Pages 931–937, https://doi.org/10.1093/cid/cir971
Wölfel, R., Corman, V.M., Guggemos, W. et al. Virological assessment of hospitalized patients with COVID-2019. Nature 581, 465–469 (2020). https://doi.org/10.1038/s41586-020-2196-x
